▎ Product Feature
1.Stability and reliability of light path system and control system.
2.Imported original fiber lasers,high and stable function,lifespan is over 100000 hours.
3.Higher cutting quality and efficiency,cutting speed is up to 80m/min with appearance and beautiful cutting edge.
4.German high performance reducer,gear and rack;Japanese guide and ball screw.
| Working Area(for panel) | 1500x3000mm |
| Clamping range of pipe's diameter | Square tube and Round tube: 20mm~240mm |
| Laser wavelength | 1060-1080 nm |
| Maximum acceleration | 1.5G |
| Maximum speed of pipe cutting | 75r/min |
| Maximum pipe length | 3000mm |
| Pipe cutting chuck bearing | 300kg |
| positioning accuracy | 0.05mm |
| repeatability | ±0.03mm |
| Working voltage | 380V 3P 50Hz |
| Laser power | 1000W/1500W/2000W/3000W/4000W/6000W/10000W/100000W etc. |
| Fiber laser cutting head | Raytools |
| Machine bed, aging treatment | Ledio |
| X、Y axis gear and rack | TAIWAN YYC |
| Square liner guide | TAIWAN PMI |
| Driver and motor | Japan Fuji |
| Reducer | Japan Shimpo |
| Control system(including software) | CYPCUT Control System |

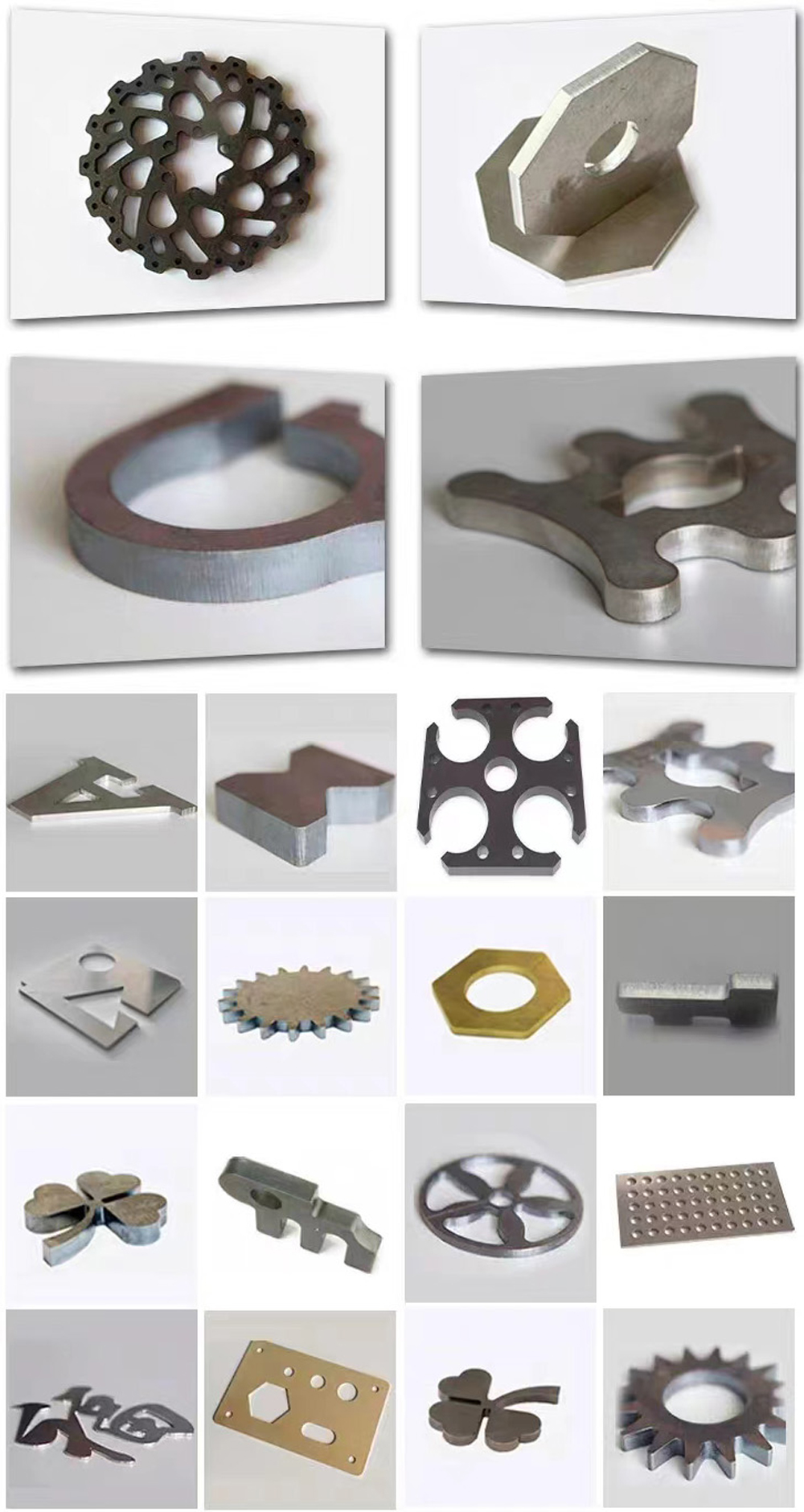

▎ Application Material
All metal materials such as high carbon steel, low carbon steel, stainless steel, aluminum alloy, brass,pickled plate, galvanized plate, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy, nickel plate, etc.
▎ Product Details

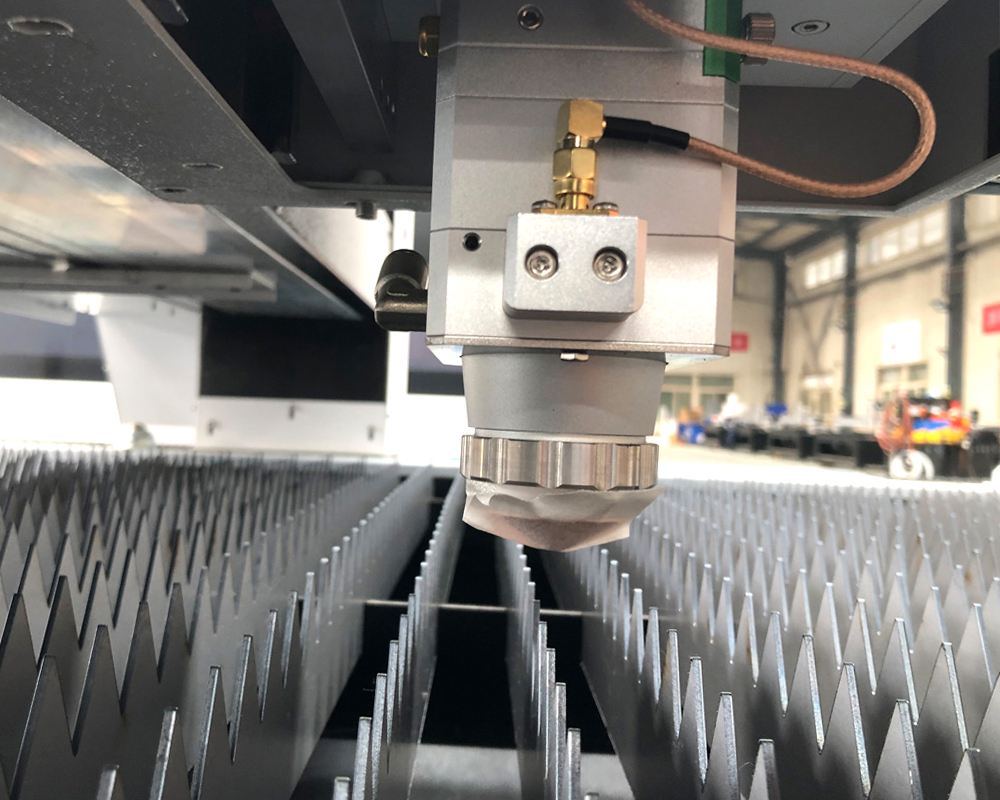

1. Cutting Head
Adopt Famous brand, reliable and stable. The inside of the laser head is fully sealed to prevent the optical part from being contaminated by dust. The punching efficiency is greatly improved. High precision and easy maintenance.

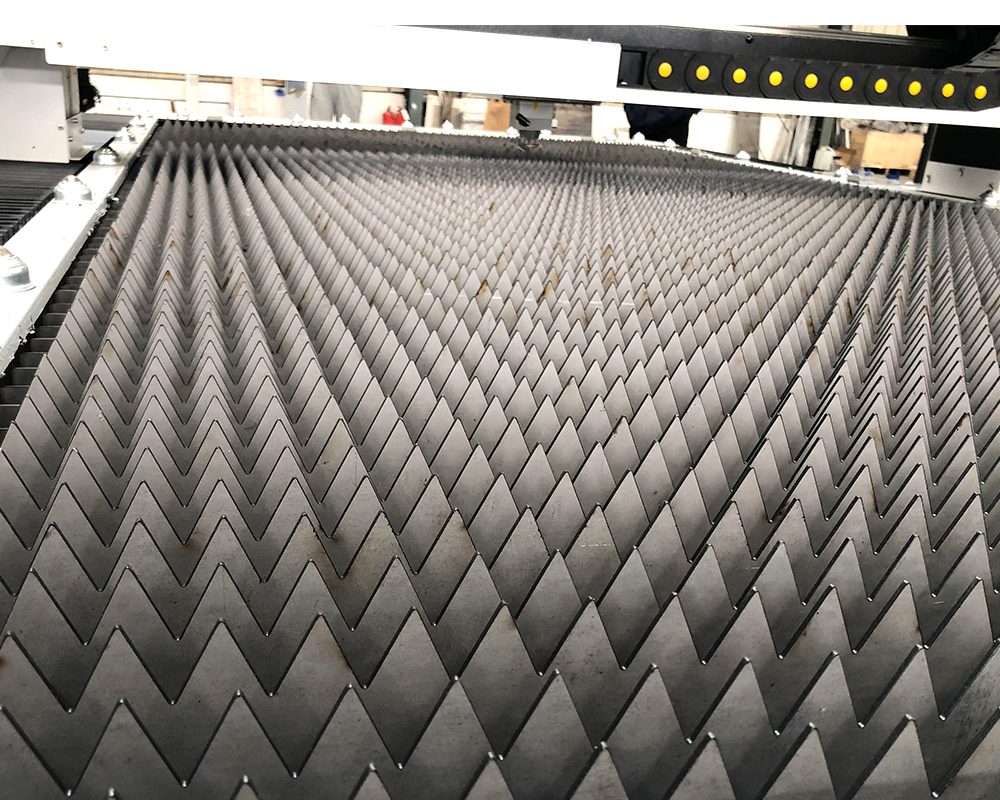

2. Steel Bed
The bed is all made of steel plate structure, the overall heat treatment, accuracy and straightness are guaranteed, the bed will not be deformed for 10 years

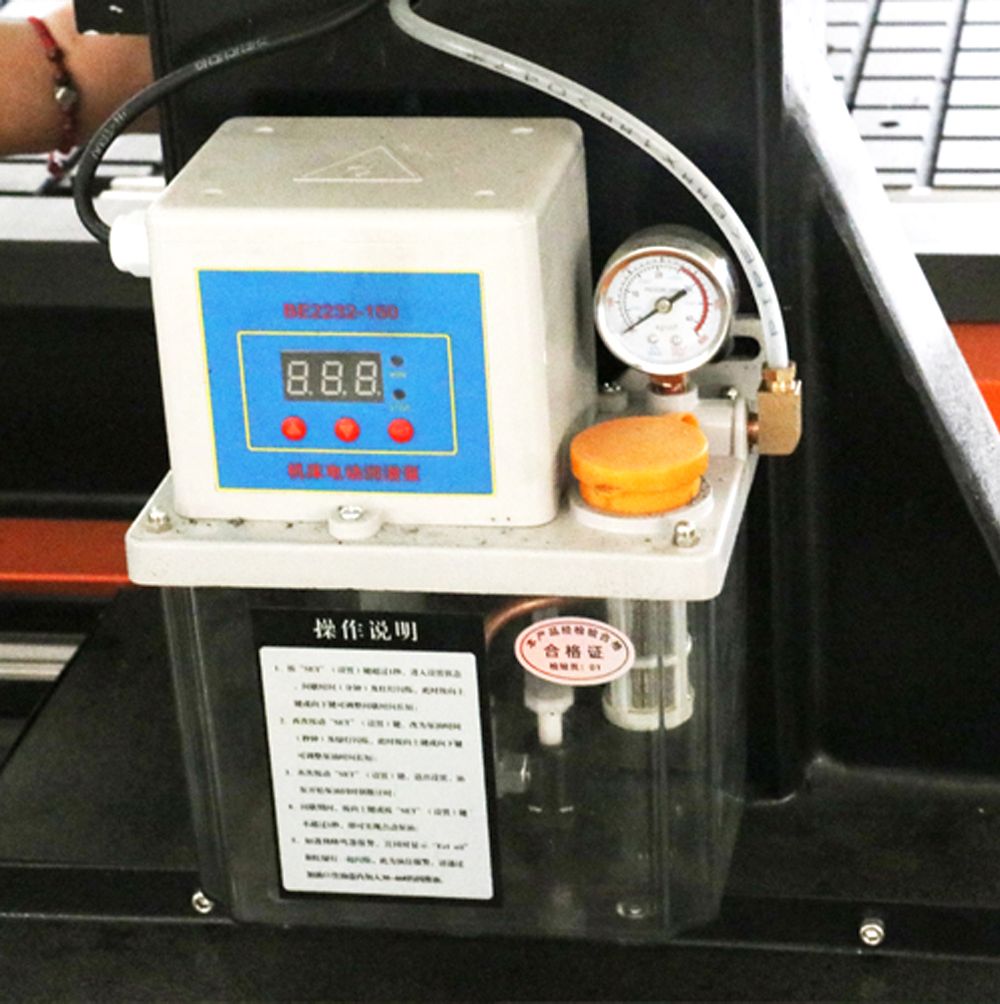

3. Automatic Lubrication System
The entire machine is automatically lubricated at regular intervals, which reduces manual lubrication time and improves machine production efficiency. Grease absorbs dust and makes the slide smooth.

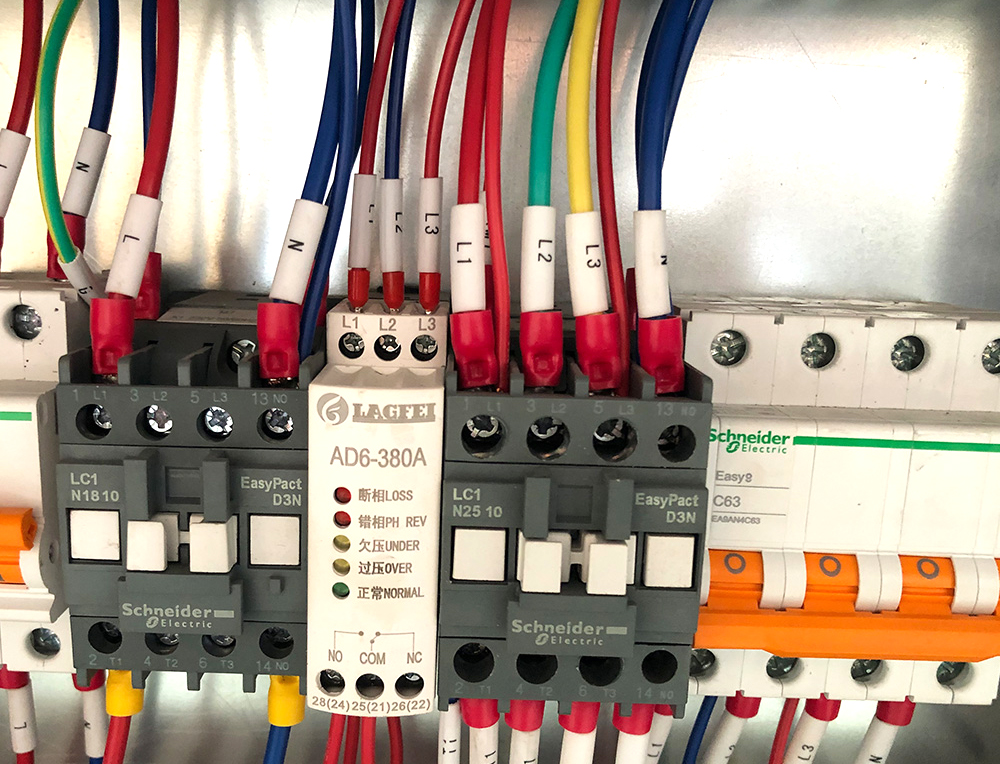

4. Standard Electricity
All electrical appliances are standard Schneider brand, the quality is guaranteed, and the electrical cabinet will automatically cut off when the door is opened, which can protect the safety of the operators.

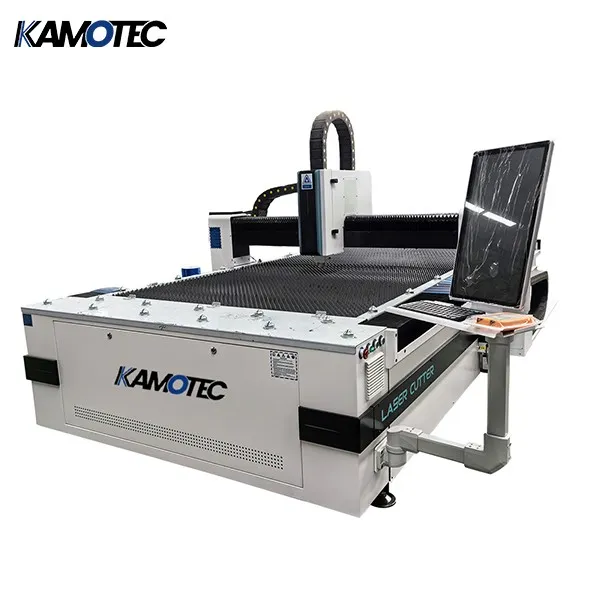

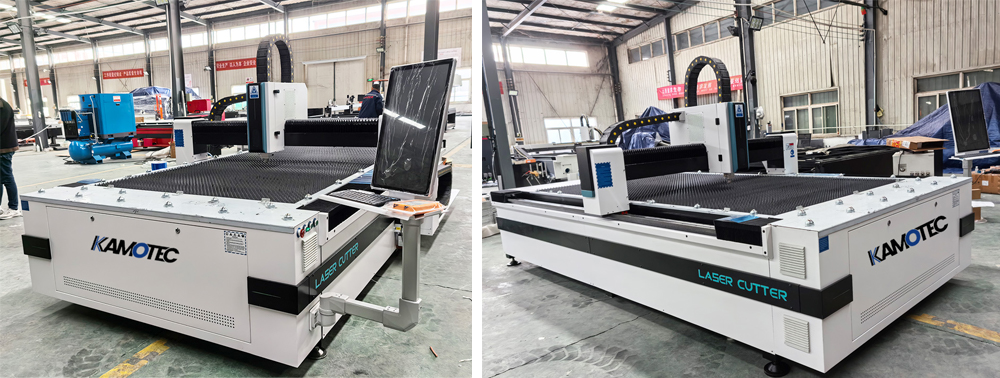

▎ Product Display
